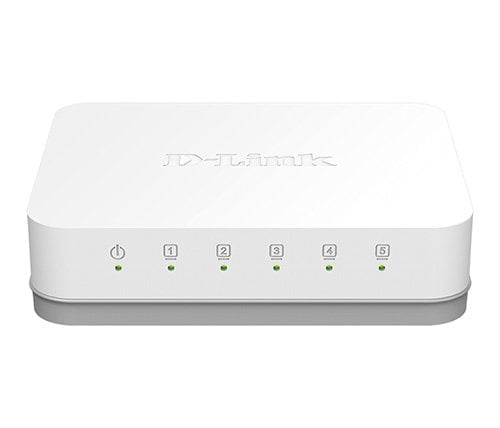

מתג D-Link DGS-1005A 5-Port Gigabit 10/100/1000Mbps

D-Link

מתג D-Link DGS-1005A 5-Port Gigabit 10/100/1000Mbps

159

-
+
מותג

D-Link

דגם

DGS-1005A

מידות

91x 73 x 22 מ"מ

מהירות המתג

1000\100

תכונות חומרה

Interfaces
• 5 gigabit ports 10/100 / 1000Base-T
Supported Features
• Green Ethernet
• Switching Matrix: 16 Gbit / s
• Automatic polarity MDI / MDIX on all ports
• The method of switching: store-and-forward
• Ethernet / Fast Ethernet: full duplex / half duplex
• IEEE 802.3x Flow Control
• Jumbo-frames 9216 bytes
• Supports IEEE 802.1p QoS (4 queues, Strict Mode)
• The diagnostic cable
Standards
• IEEE 802.3 10BASE-T Ethernet (copper twisted pair)
• IEEE 802.3u 100BASE-TX Fast Ethernet (copper twisted pair)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (copper twisted pair)
• ANSI / IEEE 802.3 NWay auto-negotiation and mode of operation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (E

תכונות תקשורת

Protocol
• CSMA / CD
Data rate
• Ethernet: 10 Mbit / s (half duplex) 20 Mbit / s (full duplex)
• Fast Ethernet: 100 MBit / s (half duplex) 200 Mbit / s (full duplex)
• Gigabit Ethernet: 2000 Mbit / s (full duplex)
Transmission Method
• Store-and-forward
MAC-address table
• 8 K
Study of MAC-addresses
• Auto update
Filtration rate / packet
• Ethernet: 14,880 packets / sec per port
• Fast Ethernet: 148,800 packets / sec per port
• Gigabit Ethernet: 1488000 packets / sec per port
Buffer RAM
• 128KB per device
Indicators
• In Port: Link / Activity / Speed
• On the device: Power
Interfaces transmission medium
• Automatic detection of polarity MDI / MDIX on all ports

שונות

Power Adapter
• 5V / 1A
Power consumption
• Input: 2.37 W DC, AC 3.9 W
Temperature
• Operating: 0º to 40ºC
• Storage: -10 to 70 ° C
Humidity
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
MTBF
• 522.270 hours
Certifications
• CE class B
• FCC class B
• ICES-003 Class B
• VCCI class B
• C-Tick
• Anatel
• CCC
• cUL
• CB
• LVD

אחריות

שנתיים
